Polyvinyl butyral resin, or PVB resin, is a thermoplastic resin made by reacting polyvinyl alcohol with n-butyraldehyde in the presence of an acid catalyst. It is valued for its adhesion, film forming ability, clarity, toughness, flexibility and compatibility with many solvent based systems. These properties make PVB useful in laminated safety glass, printing inks, coatings, wood coatings, wash primers, ceramic binders, composites and structural adhesives.
PVB is more than a "binder resin" for industrial users. The real value lies in the balance between molecular structure, viscosity, hydroxyl content, acetalization degree and application performance. A PVB resin used in laminated glass may require high strength and optical clarity, while a PVB resin for ink or coating systems may require faster dissolution, good pigment wetting and stable adhesion to the target substrate.
The uploaded source article says that PVB has no smell, good transparency, insulation, film forming, elasticity, tensile resistance, impact resistance, heat resistance, UV aging resistance and adhesion, so it is suitable for safety glass interlayers and many industrial fields. iSuoChem® also describes its PVB resin as a synthetic organic polymer resin based on polyvinyl alcohol and butyraldehyde. It has good binding, clear appearance, toughness, flexibility and adhesion to many surfaces.
Polyvinyl butyral resin is primarily composed of polyvinyl alcohol, also known as PVA, and n-butyraldehyde. This is an acid-catalyzed acetalization reaction. In simple words, hydroxyl groups on the PVA chain react with the carbonyl group of n-butyraldehyde. The reaction proceeds via formation of a hemiacetal intermediate. This intermediate is not sufficiently stable in acid and reacts further with the neighboring hydroxyl groups, giving off water and forming a stable acetal structure.
This reaction mechanism is important because it explains why PVB resin has several functional groups and not a uniform structure. The typical PVB molecule consists of butyral groups, residual hydroxyl groups and small amounts of vinyl acetate related structures. The solubility, adhesion, flexibility, water resistance, and compatibility with other resin systems are determined by these functional groups.

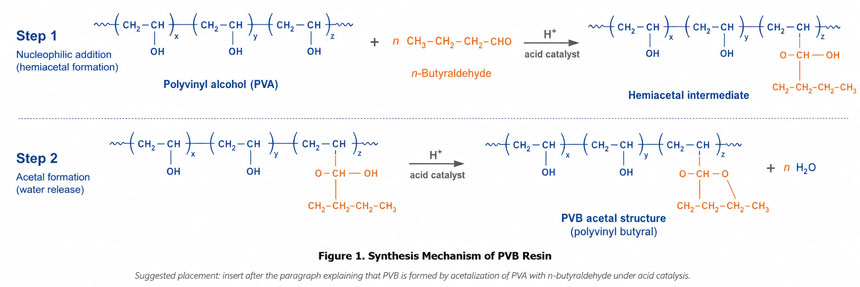

Figure 1. Synthesis Mechanism of PVB Resin
The figure is intended to help the readers understand the formation of PVB acetal structure with PVA and n-butyraldehyde.
The properties of PVB resin are closely related to its molecular structure. The butyral group increases hydrophobicity, flexibility and film properties. The hydroxyl group enhances adhesion and compatibility with polar substrates or other resins. Residual acetate related groups may also affect solubility and processing behavior.
This is why, even though they have the same general name, different PVB grades can behave very differently. An increase in viscosity can be associated with a grade with better film strength and preferable mechanical performance. A lower viscosity grade may be easier to dissolve and more practical in inks, coatings, primers or adhesive systems.
High-viscosity PVB has larger molecular chains, better mechanical properties, better adhesion and good optical properties and it is suitable for laminated safety glass interlayer material [2]. Lower-viscosity PVB is more likely to be used in adhesives or in lower-strength electronic products.
| Structural / Quality Factor | What It Influences | Why It Matters in Applications |
|---|---|---|
| Butyral group content | Flexibility, hydrophobicity, film strength | Important for coatings, adhesives, and interlayer performance |
| Hydroxyl content | Adhesion, polarity, resin compatibility | Helps bonding to glass, metal, ceramic, paper, and polar substrates |
| Molecular weight | Viscosity, strength, toughness | Higher molecular weight usually supports stronger films |
| Acetalization degree | Solubility, water resistance, particle behavior | Affects how the resin dissolves and performs in final formulations |
| Particle size and purity | Dissolution, filtration, stability | Important for inks, coatings, and clean industrial processing |
PVB resin is widely used because of its adhesion, flexibility, toughness and clear film formation. PVB is used as an interlayer in laminated safety glass to bond the glass layers together and improve impact resistance. In coatings and paints it can improve film formation, adhesion, flexibility and surface protection. It can be used as a binder for alcohol-soluble or solvent based systems in printing inks. May be used as a temporary binder or processing aid in ceramics.
PVB resin applications listed by schem.net include: Wood coatings; Wash primers; Ceramic substrates; Composites; Structural adhesives; Inks; Laminated safety glass interlayers Another article on schem.net cites PVB use in porcelain film decals, safety glass interlayers, adhesives, coatings, inks, paints, ceramic injection molding, and vacuum aluminum-plated paper.
The key question for buyers is not just “Can PVB be used in my product? A better question is, "Which PVB grade suits my solvent system, viscosity target, substrate, processing method and final performance requirement?"
The choice of PVB resin should be dictated by the final application. If the resin is to be used in printing ink, check for solubility, solvent release, pigment wetting, adhesion to film or paper and final ink transfer. If for use in coatings, check film hardness, flexibility, adhesion, clarity, chemical resistance and compatibility with other resins. If it is to be incorporated into laminated safety glass, then the importance of optical clarity, mechanical strength, moisture control and long-term stability increases.
PVB product types from A-10 to A-70 with different ranges of viscosity, volatile, polyvinyl butyral content, hydroxyl content, rotational viscosity, and ash are listed by iSuoChem®. This range of grades allows the formulator to choose PVB based on practical processing and performance requirements, rather than on a general purpose grade.
Sample testing should be included in a practical selection process. Buyers should prepare a small resin solution under the intended solvent system, verify dissolution time, check clarity, perform a filtration test and evaluate film behavior. In coating and ink systems the resin should also be tested with pigments, additives and the final substrate.
The most common mistake is choosing the PVB resin only on the basis of price. The cheaper grade might look fine as a powder, but it may dissolve slowly, form gels, or cause problems with filtration. Another mistake is selecting solely on viscosity without checking solvent compatibility. Viscosity is important but does not completely define adhesion, clarity, purity or drying characteristics.
Some users also miss out on hydroxyl content. This can be a problem as hydroxyl groups are very influential in adhesion and compatibility. For example a coating system that requires better adhesion to metal or glass may not perform well if the resin structure is not compatible to the substrate.
The better is to match together four factors, resin grade, solvent system, processing method and final application requirement.
Is polyvinyl butyral the same thing as PVB resin?
Yes. Polyvinyl butyral resin is the common abbreviation of PVB resin. It is a thermoplastic resin made up of polyvinyl alcohol and butyraldehyde.
Is PVB resin water-soluble?
PVB resin is not directly soluble in water in general. Commonly used in alcohol, ester, aromatic or mixed solvent systems depending on grade and application. According to schem.net, alcohol solvents such as methanol, ethanol and isopropanol can be used for dissolving PVB. Ester solvents can also be used.
What is the main difference between high-viscosity and low-viscosity PVB?
High-viscosity PVB generally exhibits higher film strength and better mechanical properties, while low-viscosity PVB is easier to process and possibly more appropriate for inks, coatings, adhesives, and other systems where rapid dissolution and manageable viscosity are important.
Why does PVB resin have good adhesion?
PVB has hydroxyl groups and acetal structures. These functional groups, depending on the formulation and surface treatment, allow the resin to interact with glass, metal, ceramic, paper, plastic films and other substrates.
Can PVB resin be used in coatings?
Yes. PVB can be used in wood coatings, metal coatings, waterproof coatings, protective coatings and other solvent-based coatings systems. It is appreciated because of its bonding, film formation, wear resistance, flexibility and adhesion.
PVB resin is a versatile thermoplastic resin and has a strong value in coatings, inks, adhesives, ceramic binders, composites and laminated safety glass. Performance is determined by molecular structure, degree of acetalization, viscosity, hydroxyl content, purity and particle control. The best PVB resin for industrial buyers is not always the highest viscosity or lowest-price grade. It is the grade that matches the solvent system, processing conditions and final product requirements.
Editorial Note: This article is based on the uploaded technical source document "Research Progress on the Synthesis Process of Polyvinyl Butyral Resin" and public iSuoChem® / schem.net product information. Before mass production, sample testing and technical data review should be conducted to confirm the selection of the product.
